Project Portfolio · Washington County, Utah
Pool Equipment
Pergola Cover
A custom cedar pergola built over an exposed pool equipment pad — protecting pumps, filters, and heaters from the Utah sun while keeping everything accessible and looking intentional.
Project Snapshot
Project Type
Custom Pergola / Outdoor Structure
Location
Washington County, Utah
Service Area
St. George & Surrounding Cities
Category
Outdoor Build
Primary Goal
Shade and protection for pool equipment pad
Main Challenge
Anchoring posts securely without damaging existing concrete pad
Viking's Role
Design, framing, post installation, hardware, finish
Status
Completed
The Problem
Pool equipment sitting in the open Utah sun.
Pool pumps, filters, and heaters are expensive equipment. In Washington County, where summer temperatures regularly hit 110°F, leaving that equipment exposed to direct sun shortens its lifespan, causes seals to degrade faster, and makes routine maintenance miserable. The homeowner had a new pool installed and wanted the equipment side of the house to look finished — not like an afterthought.
The challenge wasn't just shade. The structure had to be anchored properly without cracking or undermining the existing concrete equipment pad. It had to allow full access to every piece of equipment for maintenance. And it had to look like it belonged — clean lines, quality materials, hardware that matched the modern exterior of the home.
A tarp or a prefab shade sail wasn't going to cut it. The homeowner wanted something built.
The Plan
Built to last. Built to access.
Viking designed a cedar pergola with a clean open-beam top — enough shade to protect the equipment from direct sun without trapping heat underneath. The open slat design allows airflow, which matters for the HVAC units flanking the pool equipment.
Posts were set with heavy-duty black powder-coated steel post bases anchored directly into the concrete pad. This keeps the wood off the ground, prevents moisture wicking, and gives the structure a clean, modern look that matches the home's black window trim and roofline.
The beam-to-post connections use matching black steel brackets — the same hardware language throughout. Nothing was left to look improvised.
The Work
From layout to finished structure

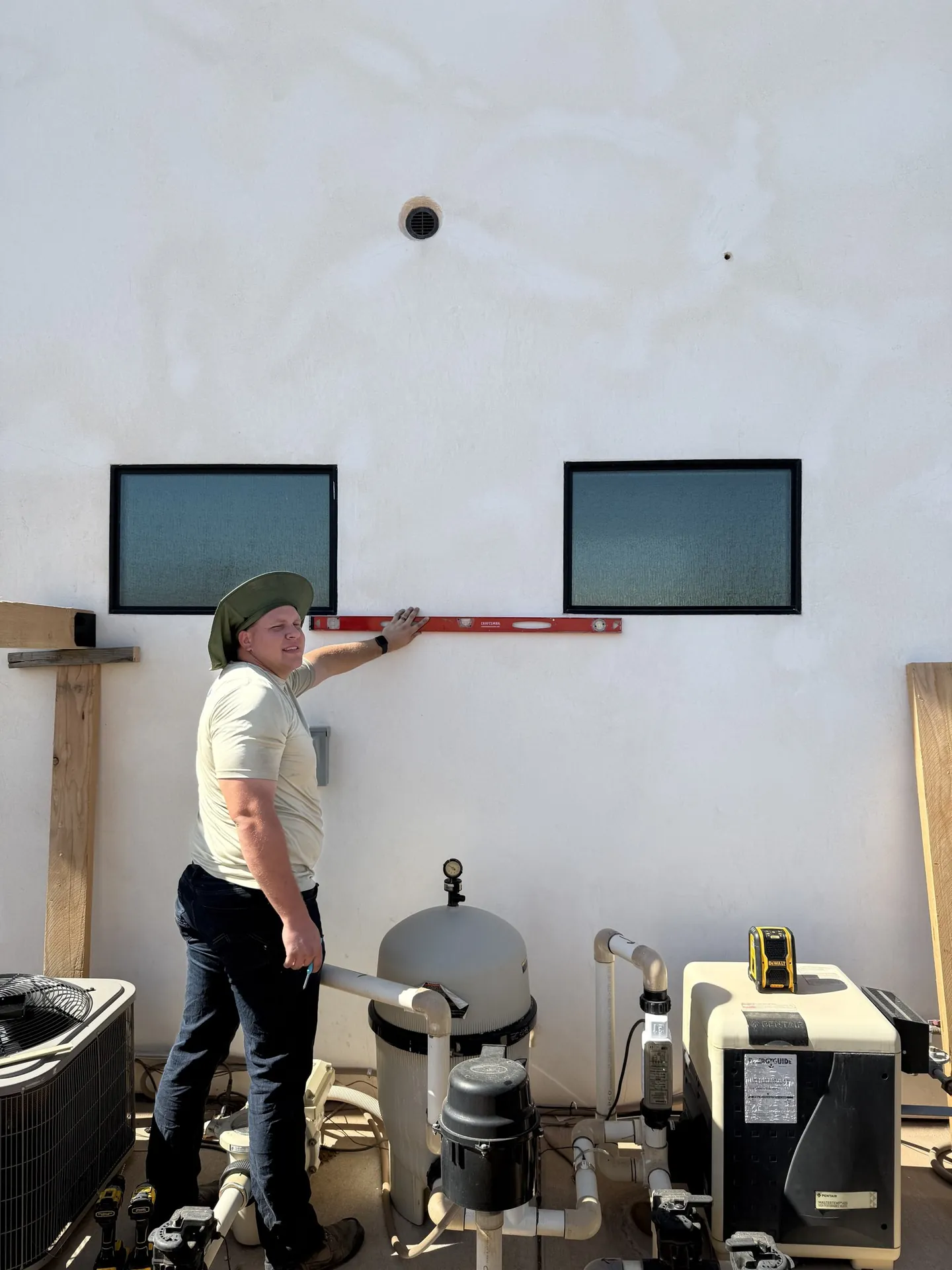

Step 1 — Layout & Ledger
Level first. Everything else follows.
Before any post went in the ground, the ledger board position was marked and leveled against the house wall. This is the reference point the entire structure is built from — if it's off, every beam and post is off. Getting it right at this stage takes a few extra minutes and saves a lot of headaches later.
The pool equipment and HVAC units were already in place, which meant working around live equipment in a tight space. The crew mapped out post locations to maintain full clearance to every service panel and connection point.

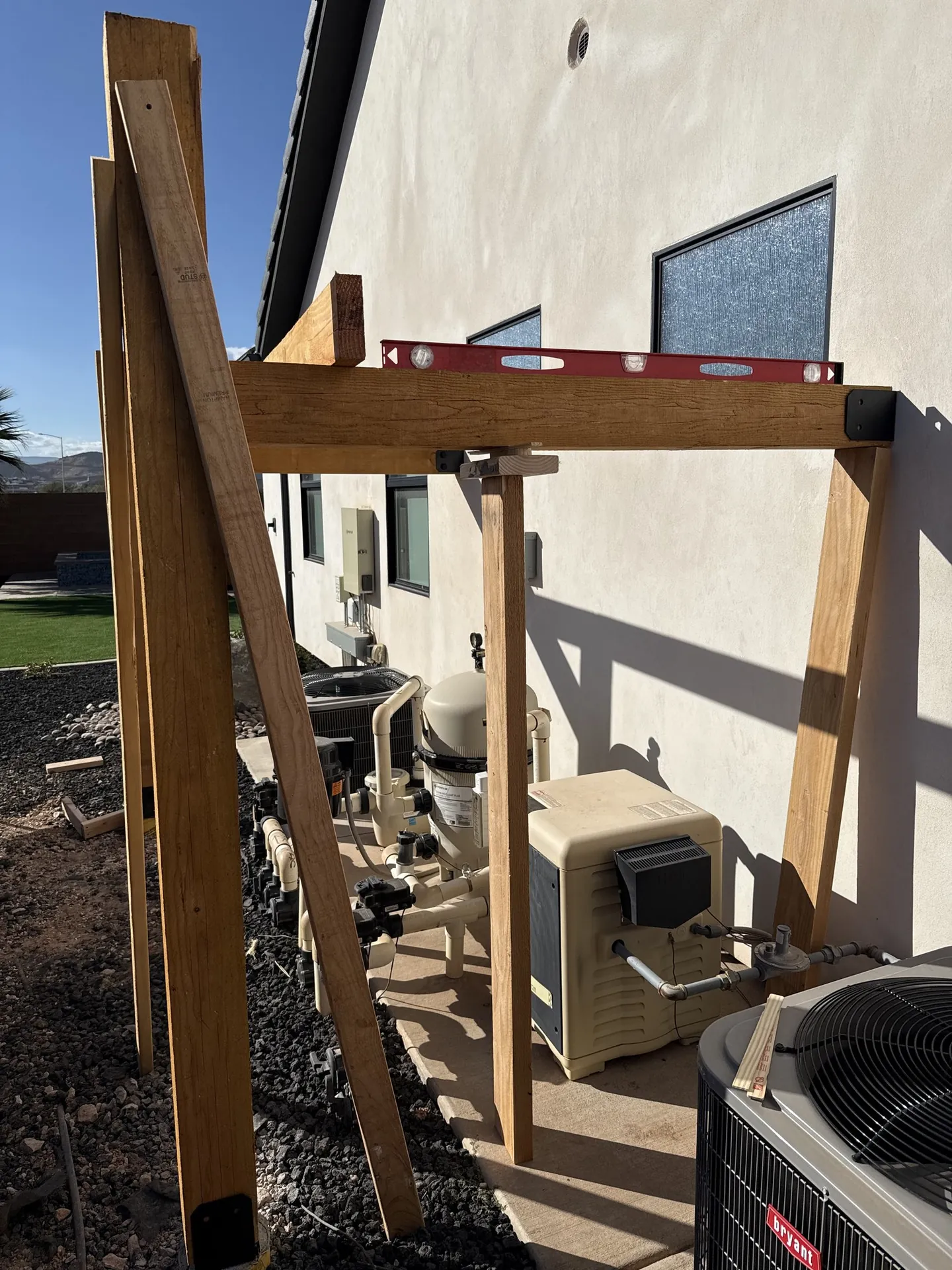

Step 2 — Post Installation & Framing
Posts set. Beams prepped.
The cedar posts were set into the black powder-coated steel post bases anchored to the concrete pad. Using surface-mount bases rather than burying the posts keeps the wood off the concrete and dramatically extends the life of the structure in a climate with wide temperature swings and occasional moisture.

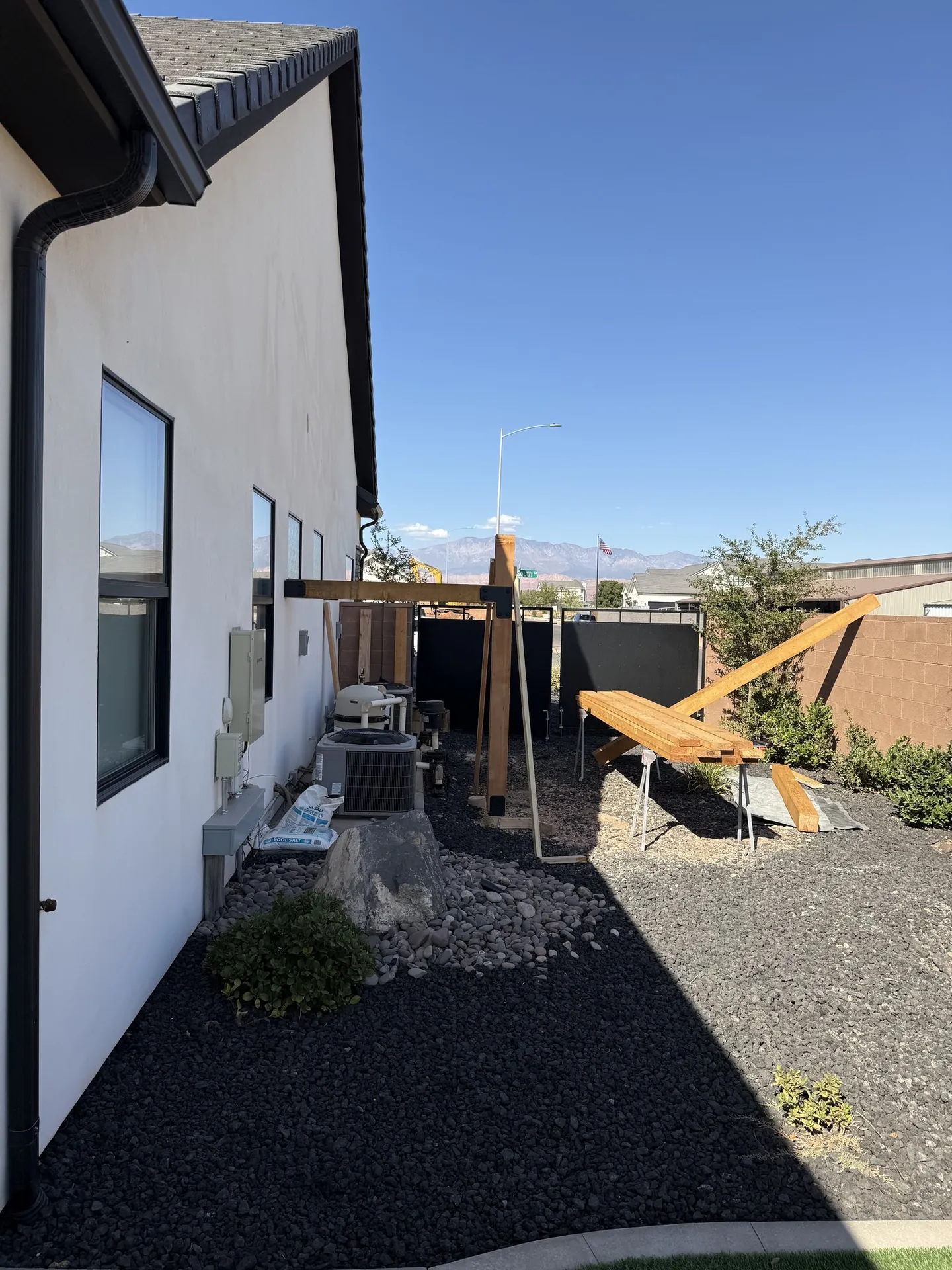

The main beams were cut, prepped, and assembled on sawhorses before being lifted into position — a cleaner approach than trying to cut and fit in place with equipment in the way.

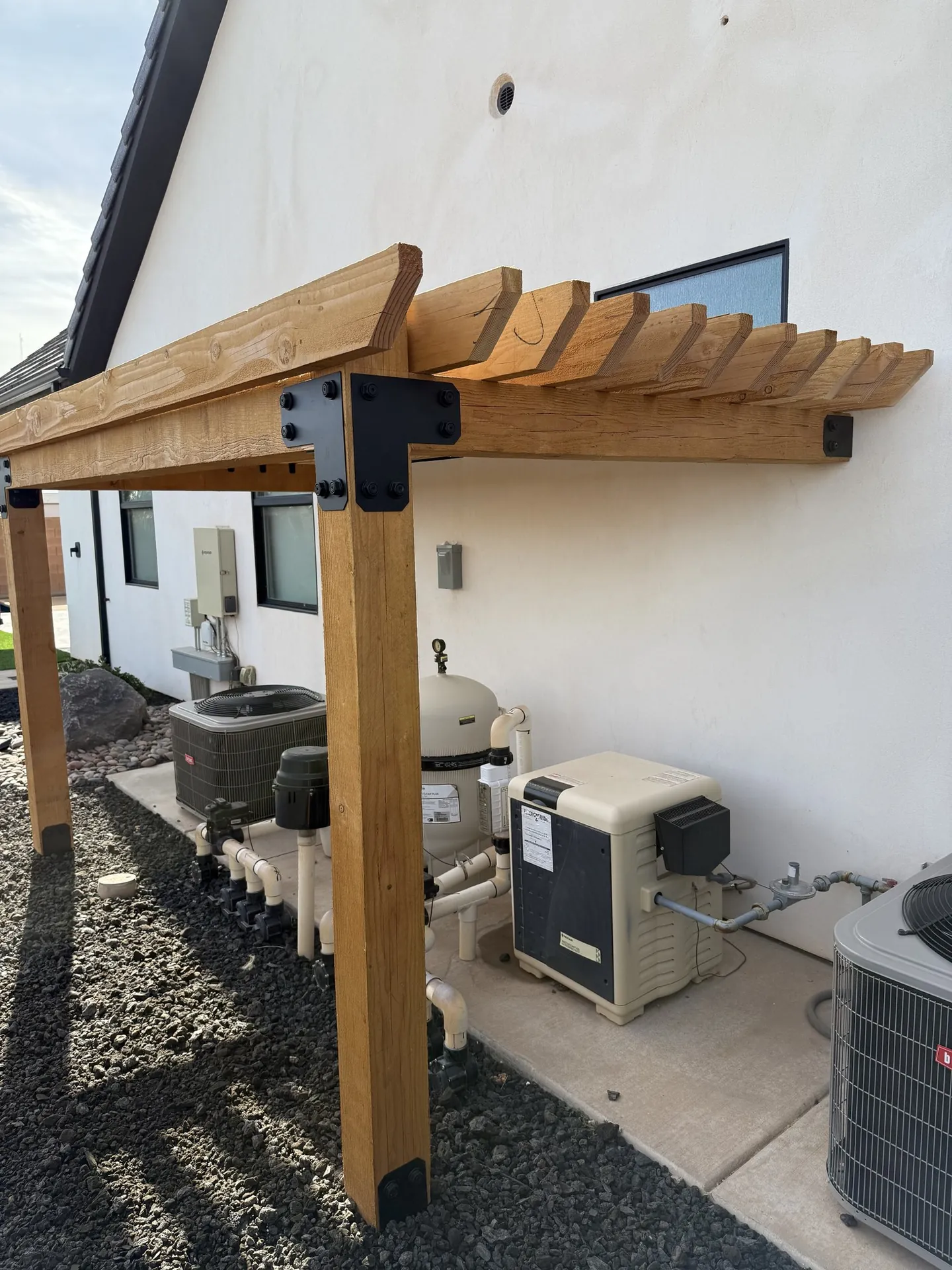

Step 3 — Hardware & Connections
Hardware that matches the house.
The black powder-coated steel hardware — post bases, beam brackets, and connection plates — was chosen to match the home's black window frames and roofline trim. This is the kind of detail that makes a structure look designed rather than just built.
Every connection point is structural, not decorative. The hardware is rated for outdoor exposure and won't rust or degrade in the Utah climate. The cedar will weather naturally over time to a silver-gray that looks equally good against the white stucco exterior.

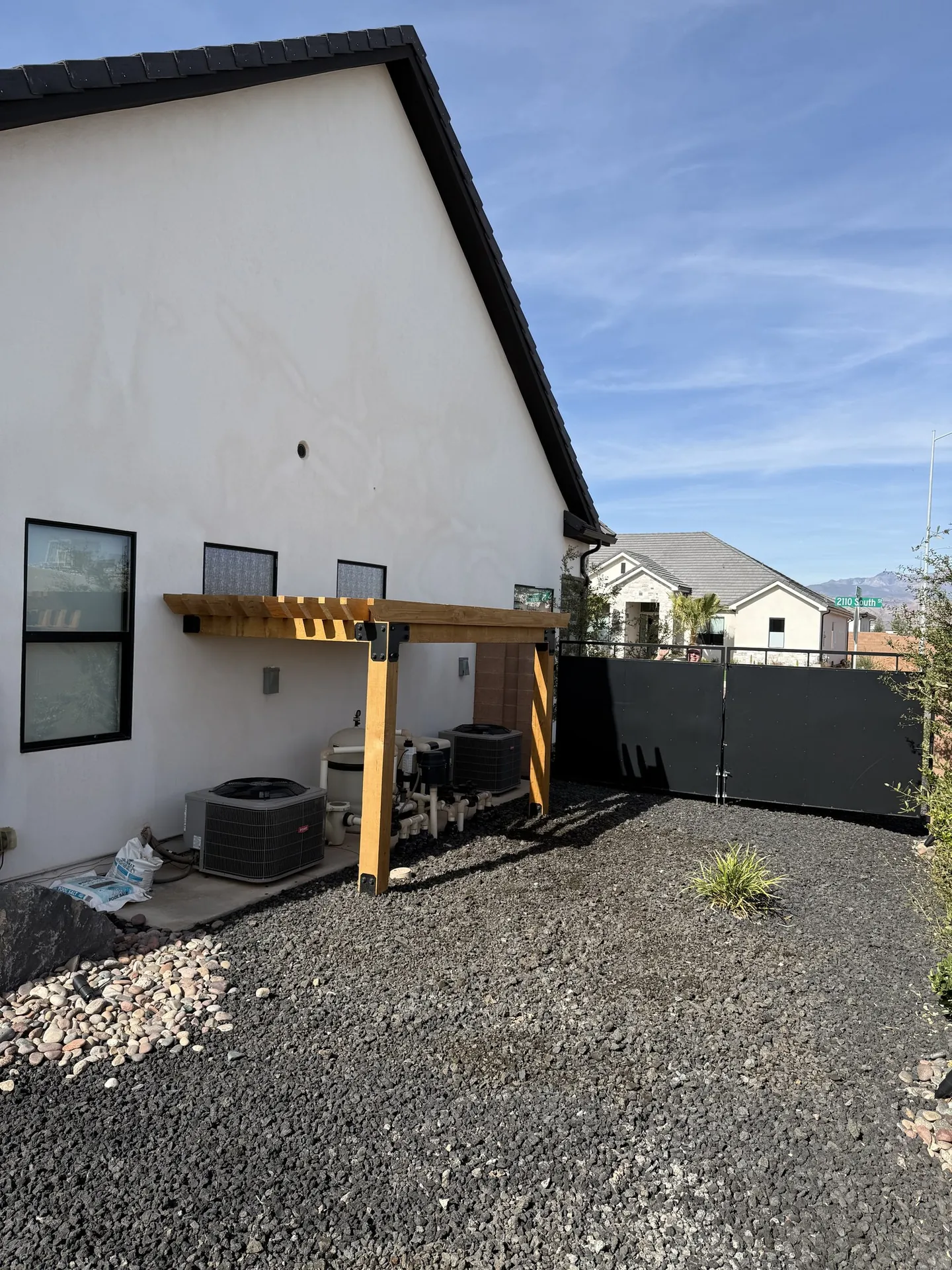

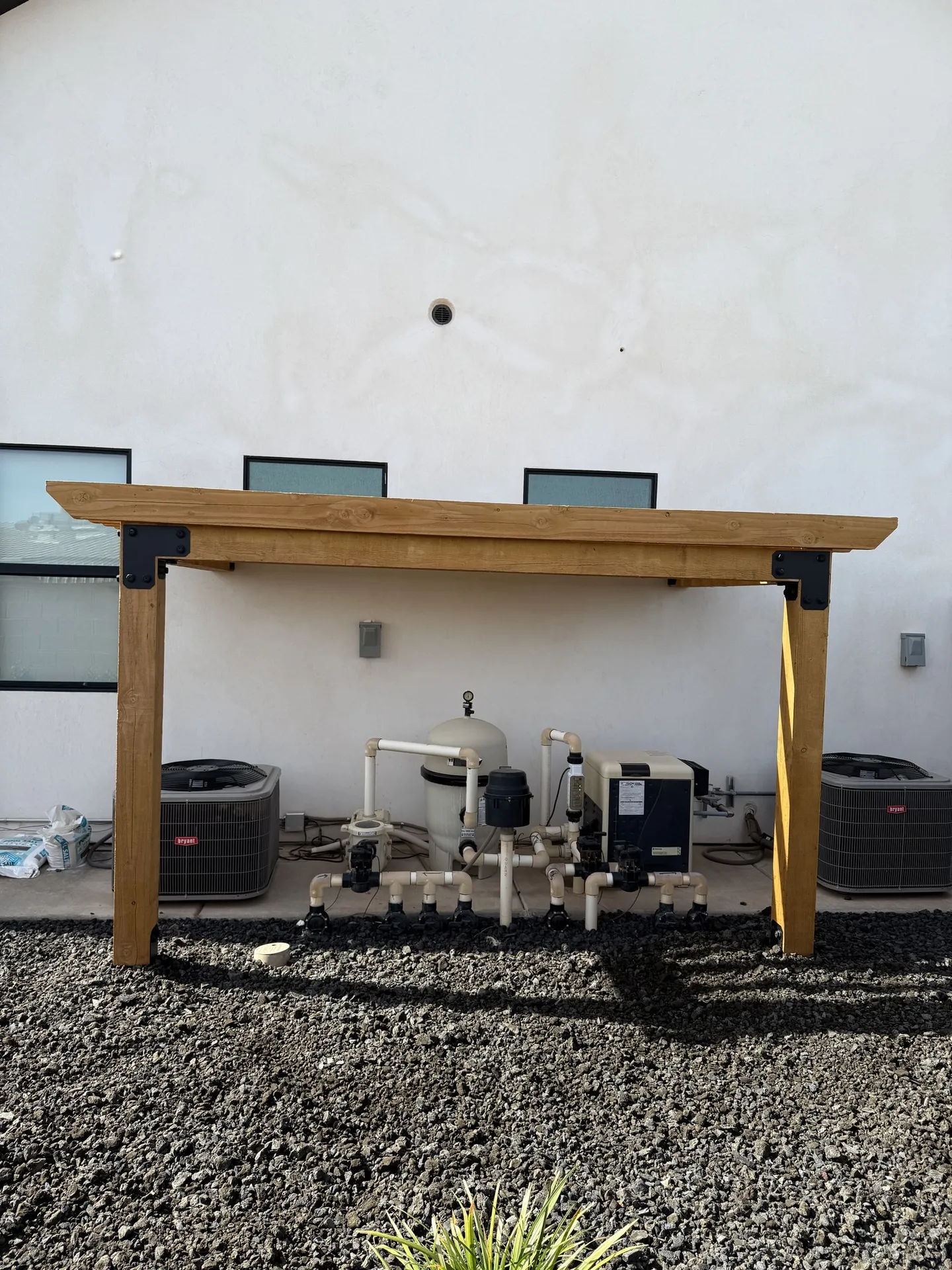

The Finished Result
Equipment protected. Side yard finished.
The pergola covers the full pool equipment pad — pump, filter, heater, and manifold — while leaving the HVAC units on either side accessible and unobstructed. The open-slat top provides meaningful shade without trapping heat, which matters for both the equipment and for anyone doing maintenance on a 105-degree day.
From the yard, the side of the house now looks like a finished outdoor space rather than a mechanical area. The cedar and black steel read as intentional design decisions — not an afterthought. It's the kind of project that doesn't get noticed by guests, which is exactly the point.
What Homeowners Can Learn
Five things worth knowing before you build a pergola
Shade extends equipment life in Utah's climate
Pool equipment manufacturers rate their products for specific temperature ranges. In Washington County, direct sun exposure can push surface temperatures well above ambient air temperature. A simple shade structure is one of the lowest-cost ways to extend the service life of a pump or heater.
Access matters as much as coverage
A shade structure that blocks access to service panels, filter lids, or valve handles creates more problems than it solves. Good design accounts for how the equipment is actually used — not just how it looks from across the yard.
Post bases outperform buried posts in this climate
Burying cedar posts in concrete is common, but in a high-UV, high-temperature environment with occasional moisture, the buried section degrades fastest. Surface-mount post bases keep wood off concrete, allow inspection, and are replaceable without tearing out the whole structure.
Hardware consistency makes a structure look designed
Matching the hardware finish to existing exterior details — window frames, roofline trim, gate hardware — is a small decision that has a big visual impact. It's the difference between a structure that looks built and one that looks bought.
Cedar weathers well in the desert
Cedar is naturally resistant to insects and rot, and it weathers gracefully in dry climates. Over time it transitions from the warm honey tone of new cedar to a silver-gray that looks equally good against stucco. It doesn't require painting, though a UV-resistant sealer can slow the weathering if the homeowner prefers to keep the original color.
